LOCATION : HOME > PRODUCTS > Wisdom shows > LED interactive floor tile screen
LED interactive floor tile screen Product Center

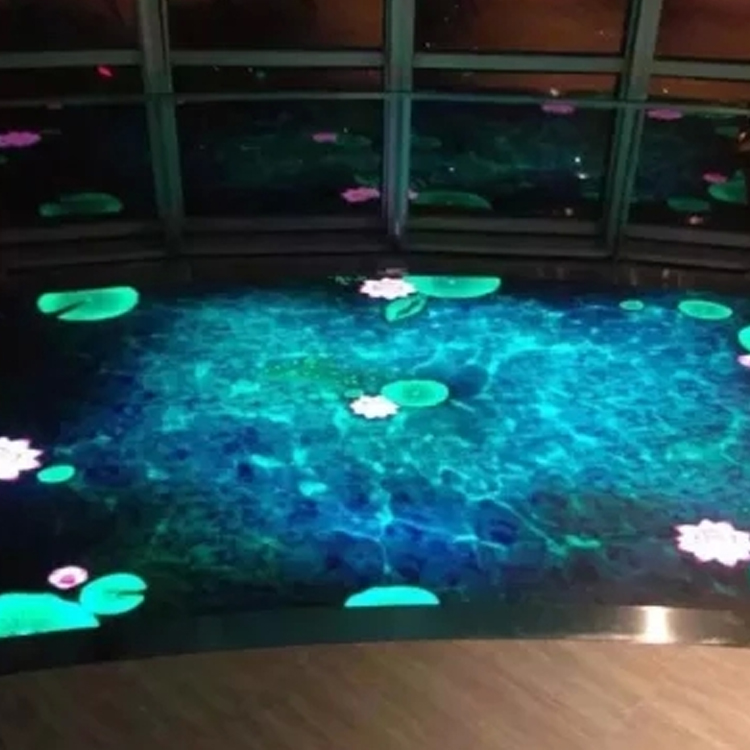

P10 LED fFloor tile screen interaction
400-0519-050

詳細描述

Details

Features:

1, the main structure of the overall die-casting aluminum, enhanced load-bearing, the use of more reliable.

2, the overall degree of protection IP68

3, to adapt to the indoor and outdoor ground installation, the depth of gray processing, point by point correction, the picture is more clear and realistic.

4, super-bearing capacity of 18 tons / square meters, the unit bearing capacity of 2 tons, scrub atomization special mask, color effect outstanding.


Parameter:


Module resolution

Physical point spacing(mm)

10

Physical density (dots / m2)

10000

Luminous spot color combination

1R1G1B

Module resolution

24×24

Module size(mm)

240×240

Module resolution

48×48

Module weight(kg/m2)

30

LEDPackage form

three in one

Module size (width * high *thick)mm

480×480×60

Technical Parameters

Best sight(m)

≥10

Vertical viewing angle

100°~120o

Average power consumption(W/m2)

300~600

Maximum power consumption(W/m2)

≤800

graphics card

DVI Video card

control method

Synchronous control

Drive device

Constant current

Drive mode

1/4

Change frame frequency(Hz)

≥60

refresh rate(Hz)

≥1000

White balance brightness(cd/m2)

≥3000

Working temperature

-20℃~50℃

Operating Voltage(V)

AC 220V/110V±15% 47~64Hz

Brightness adjustment mode

256 level

Computer operating system

WINXP、WIN2000、WIN98 and so on

Video signal

DVI、VGA、S-Video、RGBHV、

COMPOSITION and so on

Control System

Video capture card (optional) + DVI graphics card + main control card + fiber transmission (optional) / (asynchronous system)

Mean time between failures(h)

≥10000

Design life(h)

50000

Horizontal perspective

120°

Waterproof rating (front / back)

IP65/IP54

Working environment humidity

10%~95%

Grayscale

4096
