The LED abnormity screen Product Center
LED screen soft membrane
400-0519-050

詳細描述

Details



1-1Z531153415207


圖片2

Product features:

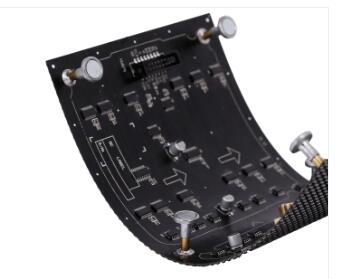

1, module, soft, strange shape, convenient installation. The cylindrical screen brush with high performance, can be lifting, loading, mounting, etc.

2, module mask using silica gel, smooth without off color.

 3, strong module, softness, need what kind of model can be assembled into what kind of modelling; Such as module and can be fixed at the bottom of the frame (or box) made into various shapes such as cylindrical, s-shaped, wavy.

4, flexible modules can also make the corresponding box body, make the screen surface is smooth and beautiful; Body signal and power cord with rapid joint connection, convenient installation, simple operation; And can be used together with the professional audio and video processing system.


圖片7

圖片8


圖片10


Number

Category

Brightness

View (horizontal / vertical)

Wavelength

Test Conditions

1

RED  LED

180~220MCD

1205o

620-625nm

25,20mA

2

GREEN LED

650~750MCD

1205o

520-525nm

25,20mA

3

BLUE LED

90~110MCD

1205o

465-470nm

25,20mA

LED chip

Number

LED constitute

Type

1

SMD

SMD 3528

Specifications

1

Point spacing

10mm

2

Drive mode

Constant current 1/8 sweep

3

Driver IC

MBI5024

4

Module resolution

W32×H16

5

Module pixels

512 dots

6

Module size

320*160mm

7

Box size (width x height)

640*640mm

8

Box resolution

64dots*64dots

9

Number of modules

8pcs

10

Pixel density

10,000 dots/

11

Material

Iron box

12

Box weight

8.8KG

13

Brightness

850-1000cd/

14

Perspective

Horizontal 140 °, vertical 140 °

15

Minimum viewing distance

10m

16

Gray scale

16bit

17

Colour

281 Trillion

18

Refresh rate

1920HZ

19

Change frame frequency

60fps

20

Input voltage

AC220V/50Hz or AC110V/60Hz

21

Power consumption (maximum / average)

280/100 W/

22

Screen weight

24kg/

23

Mean time between failures

>10,000 h

24

Service life

≥100,000 h

25

IP protection class (front / rear)

IP65/IP43

26

Temperature

20℃~+60or40℃~+60

27

Humidity

10%-90%RH

28

Operating system

Colorlight or Linsn

29

Source code compatibility (using video processor)

AV,DVI,HDMI,SDI,S-Video,YPbPr.
