The grid panel Product Center

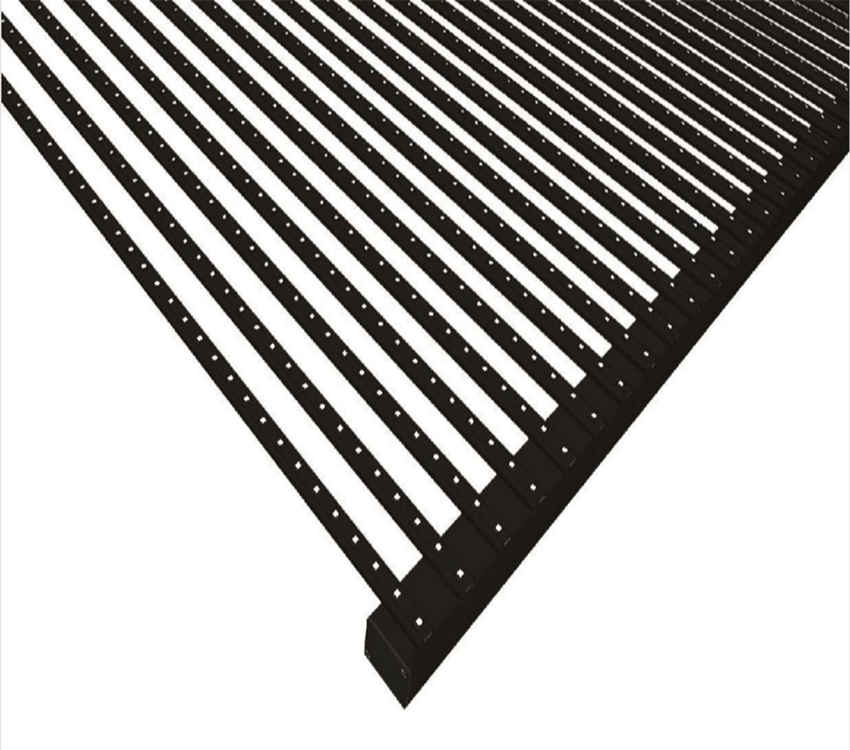

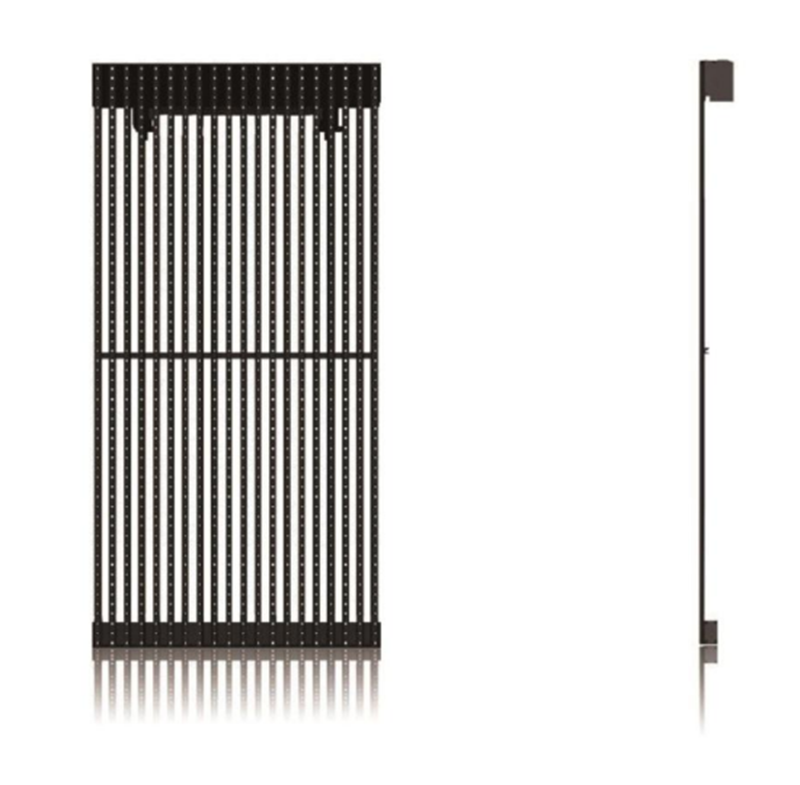

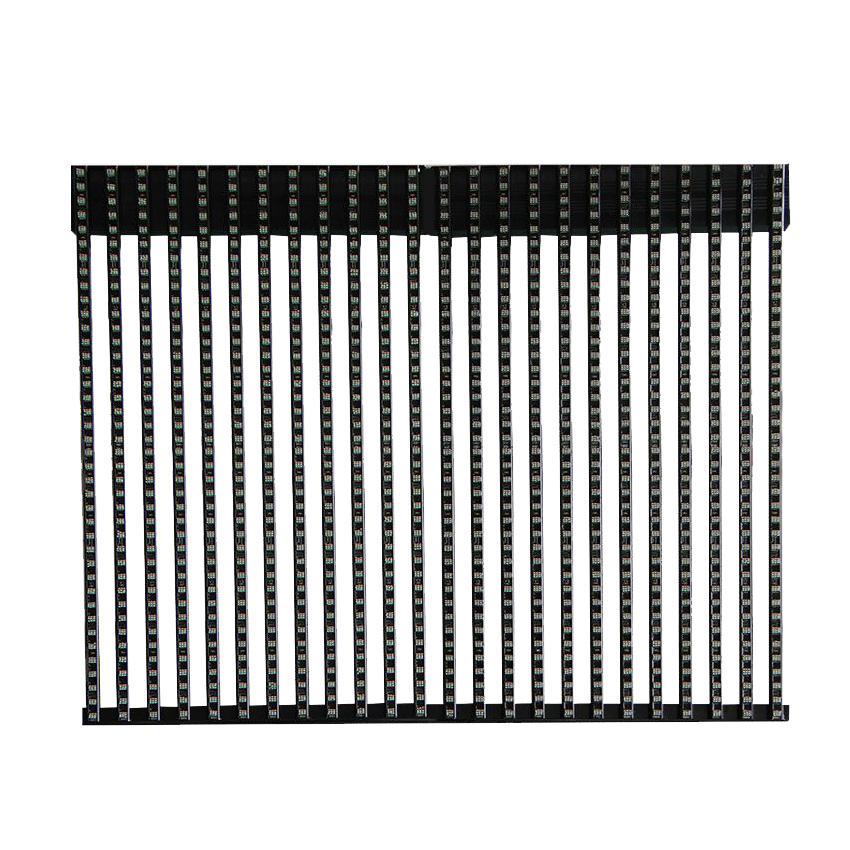

P16 LED grid screen
400-0519-050

詳細描述

Details

Features:

1, the new mask design, so that the light emitted by the LED almost zero reflection to ensure that the display screen effect.

2, the unit module of the box design using a high temperature spray technology, greatly improve the anti-rust function.

3, the module installation surface smoothness control in the plus or minus 0.2mm, the whole flatness is good.

4, the display color uniformity high.

5, the back of the circuit board all three anti-treatment, to prevent the line of wet, oxidation, improve the service life.

6, screen body switching power supply efficiency greatly improved, reducing power failure rate;

7, the front of the module using high-quality potting seal, the back of a waterproof apron, improve the waterproof performance of the display.

8, with IP65 above the high-performance waterproof, dustproof capacity; high brightness, all-weather display, to adapt to a variety of outdoor harsh environment.


Parameter:


Module parameters

Physical point spacing(mm)

16

Physical density(Point / m2)

3906

Luminous spot color combination

1R1PG1B

Monolithic resolution

8×16

Monolithic size(mm)

256×128

Module resolution

64x48

Module size

1024x768

Number of module pixels (point / module)

3072

Module weight (kg / m2)

75

Technical Parameters

Best sight(m)

15~300

Lamp and horizontal view

Φ3 oval,110o

Vertical viewing angle

≥50o

Screen thickness

≤ Module thickness 15cm + Maintenance thickness 70cm / ≤ Module thickness 30cm + Maintenance thickness 70cm

Average power consumption(W/m2)

500~1000

Maximum power consumption(W/m2)

≤1200

graphics card

DVI Video card

control method

Synchronous control

Drive device

Constant current

Drive mode

Static

Change frame frequency(Hz)

≥60

refresh rate(Hz)

≥300

Grayscale / color

Can display 16.7M color

White balance brightness(cd/m2)

≥7000

Storage ambient temperature

-40℃~+80℃

Working temperature

-20℃~+60℃

Operating Voltage(V)

AC 220V±15% / AC 110V±15%

Brightness adjustment mode

Software 16 level adjustment (synchronization system) / software 8 level adjustment (asynchronous system)

Computer operating system

WINXP、WIN2000、WIN98 and so on

Video signal

RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION (Synchronization System) / None (Asynchronous System)

Control System

PCTC card (optional) + DVI graphics card + main control card + fiber transmission (optional)

Mean time between failures(h)

≥3500

Design life(h)

100000

Miscellaneous rate

<0.00001

Software

LED studio (synchronous system) / asynchronous special software or user-compiled (asynchronous system)

Module configuration

Column assembly

The service is not available at this time

Module

Standard configuration

Hoisting

Optional configuration

Lock

Optional configuration
